DESCRIPTION

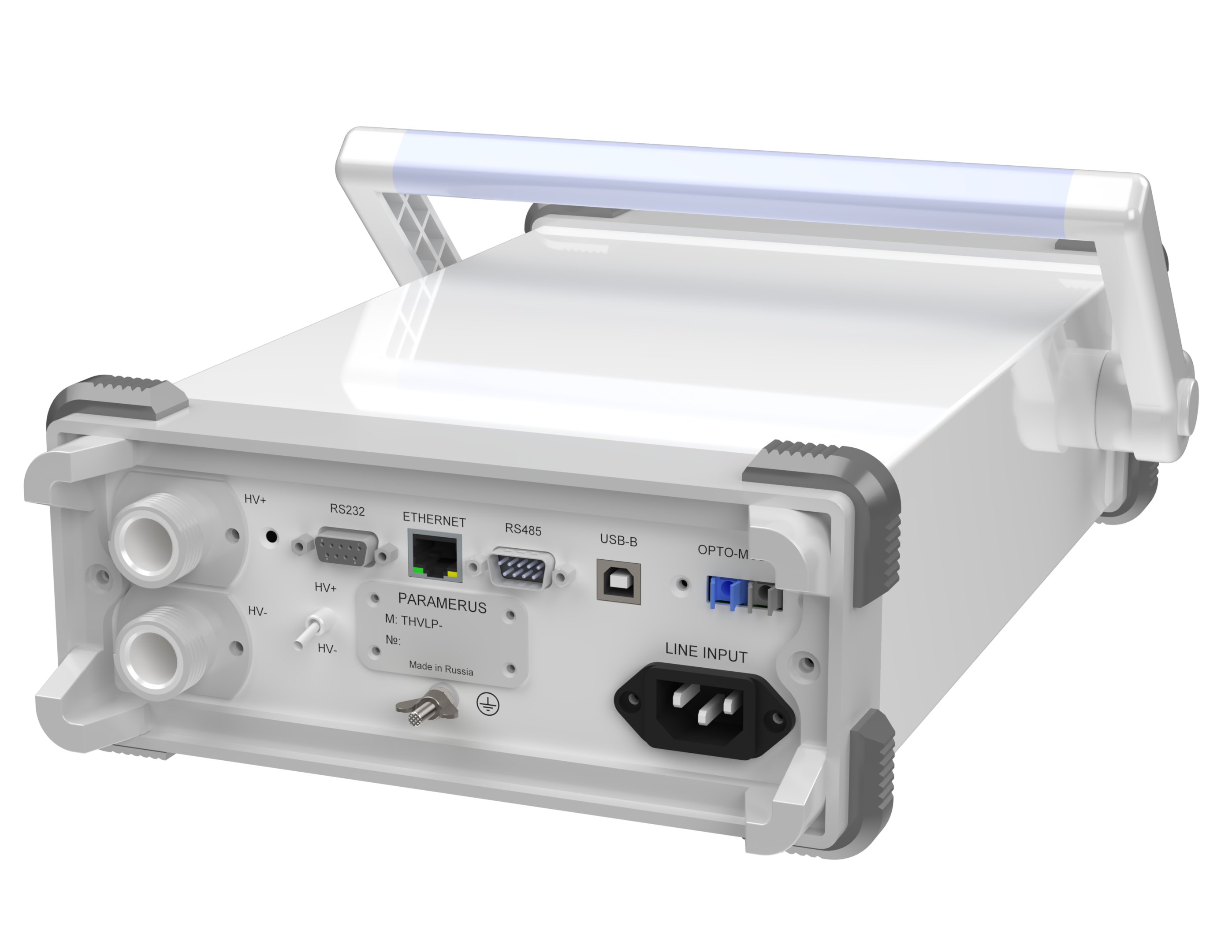

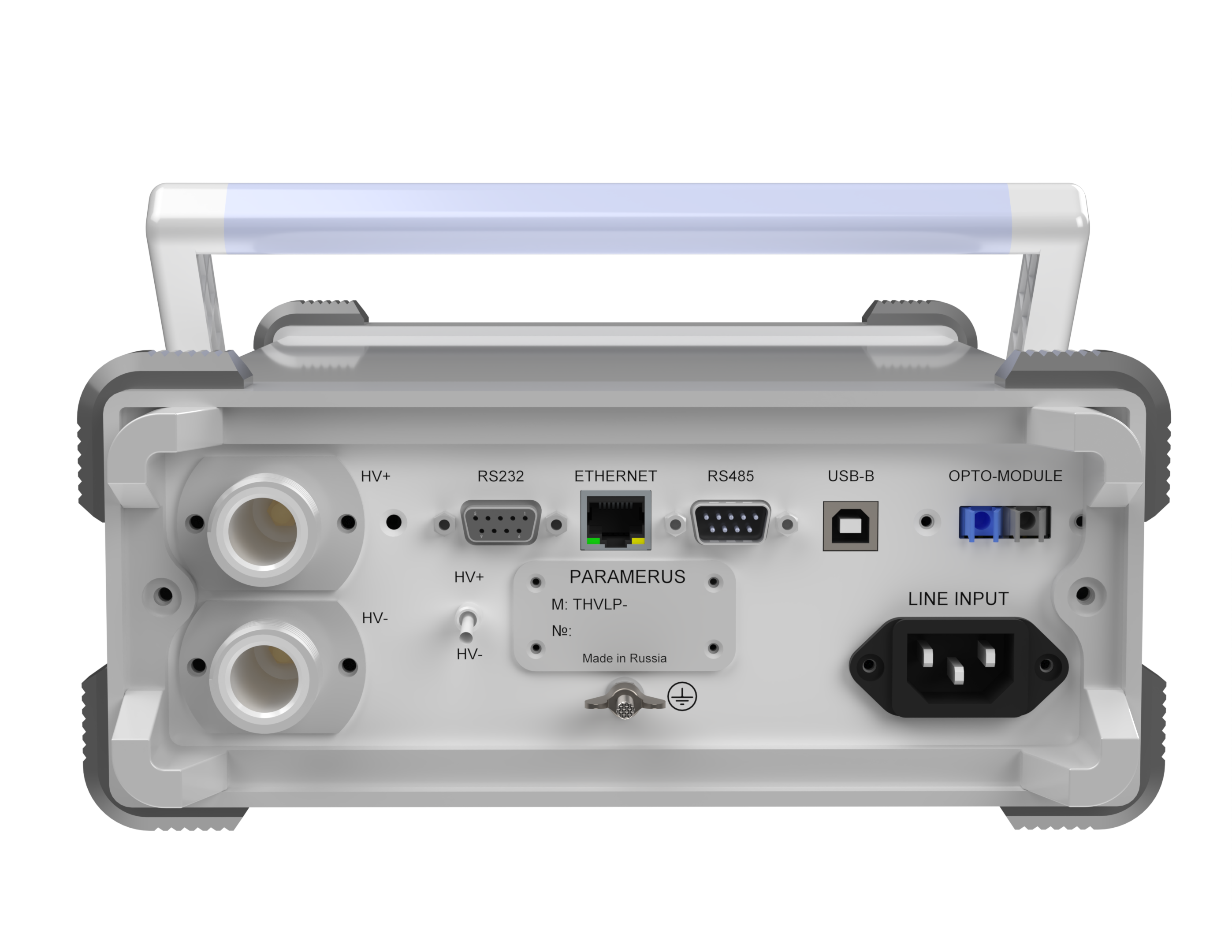

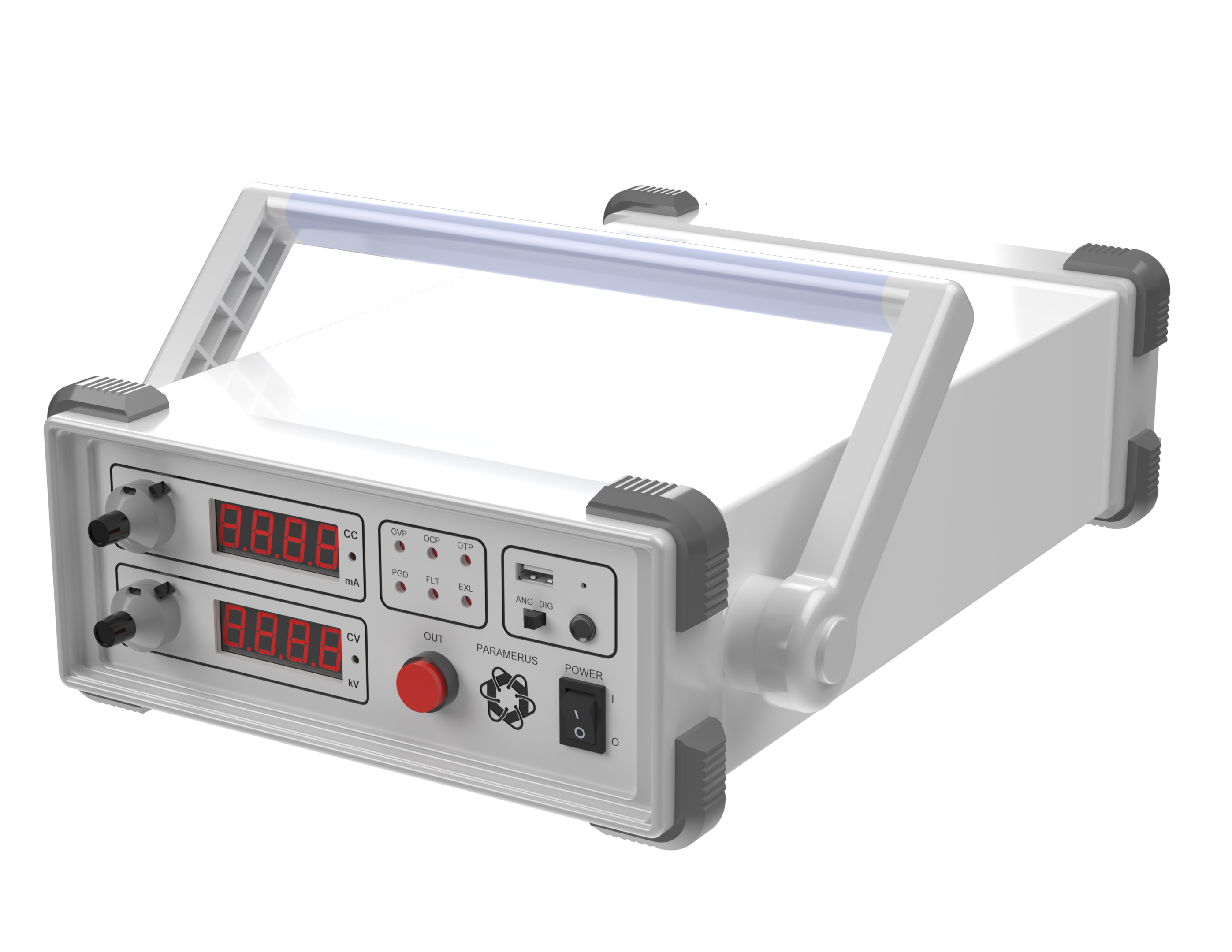

The THVLP series of high-voltage desktop power supplies includes models with positive and negative polarity with an output voltage from 125 V to 6 kV with a power from 10 W to 125 W. All models are equipped with a set of protections with adjustable thresholds and support three modes of operation: current, voltage and power adjustment, which allows you to use these devices to solve a wide range of industrial and research tasks.
FEATURES
- Input power protection
- Overload and short circuit protection
- Output over/under voltage protection
- Arc protection
- Active PFC with 99% efficiency
- Support for digital interfaces RS-232, RS-485, USB, GPIB, Ethernet
- Intuitive user software
- Production, support and service - Russian Federation
APPLICATION
Electrostatic filters, Photomultipliers, Semiconductor materials processing, Capacitor charging, R&D, Test equipment, Reference power supply
| The lineup | Rated power | Maximum output voltage at rated power, V | Polarity | Files | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| THVLP-10-X | 10 W | 125 | 250 | 500 | 1000 | 2000 | 4000 | 6000 | Positive Negative Bipolar Switchable | |
| THVLP-20-X | 20 W | |||||||||
| THVLP-30-X | 30 W | |||||||||
| THVLP-60-X | 60 W | |||||||||
| THVLP-125-X | 125 W | |||||||||
The HVS-B series is a compact version of high-voltage switching devices, equipped with a set of protections and feedbacks. Products of this series are characterized by the shortest opening time, ease of operation, high reliability and small overall dimensions.
Подробнее
HVS-B
Minimum price: 115 000 RUB
pcs.
The HVS-HB series is the basic version of high-voltage switching devices in a half-bridge configuration, equipped with a set of protections and feedbacks. Products of this series are intended for the formation of rectangular pulses on any type of load.
Подробнее
HVS-HB
Minimum price: 121 000 RUB
pcs.
