DESCRIPTION

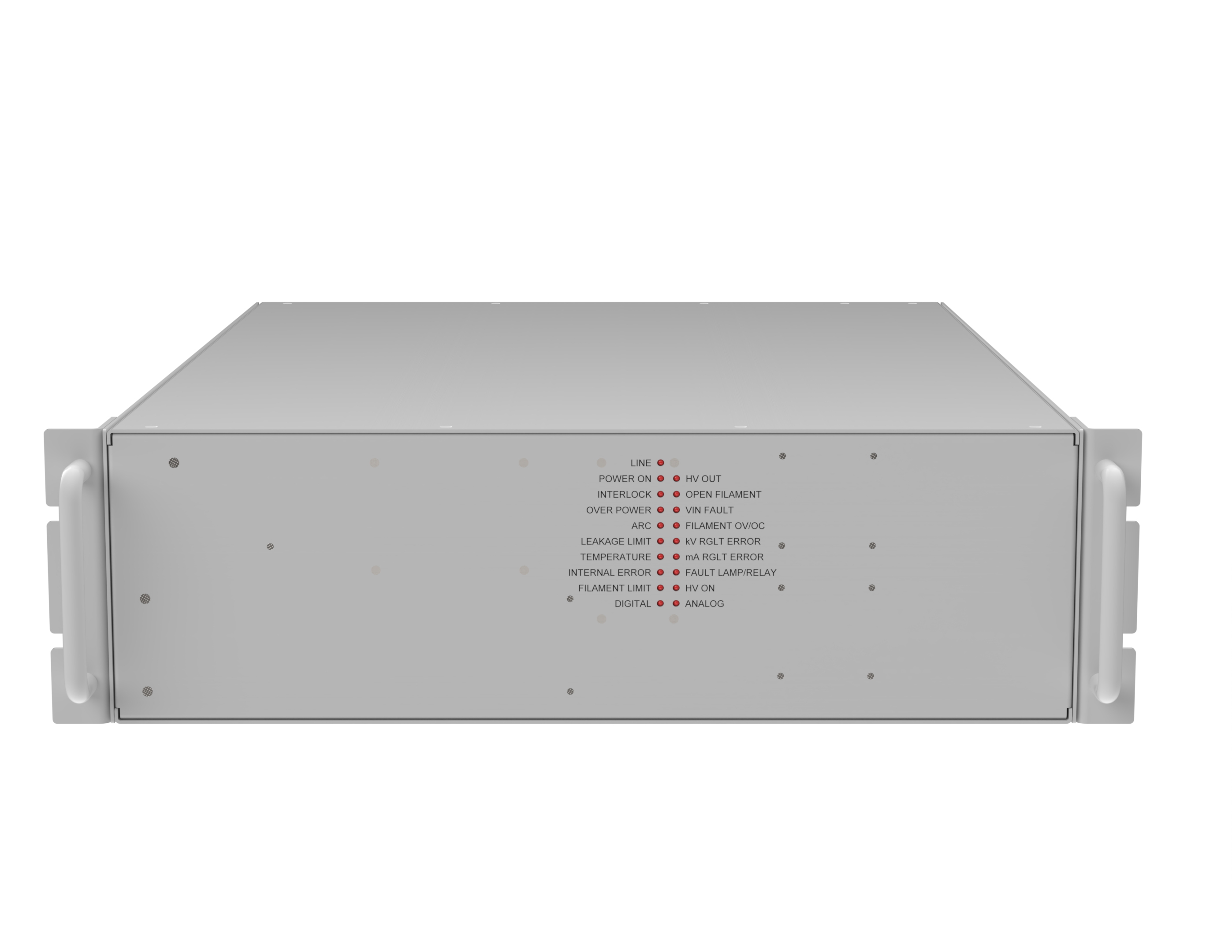

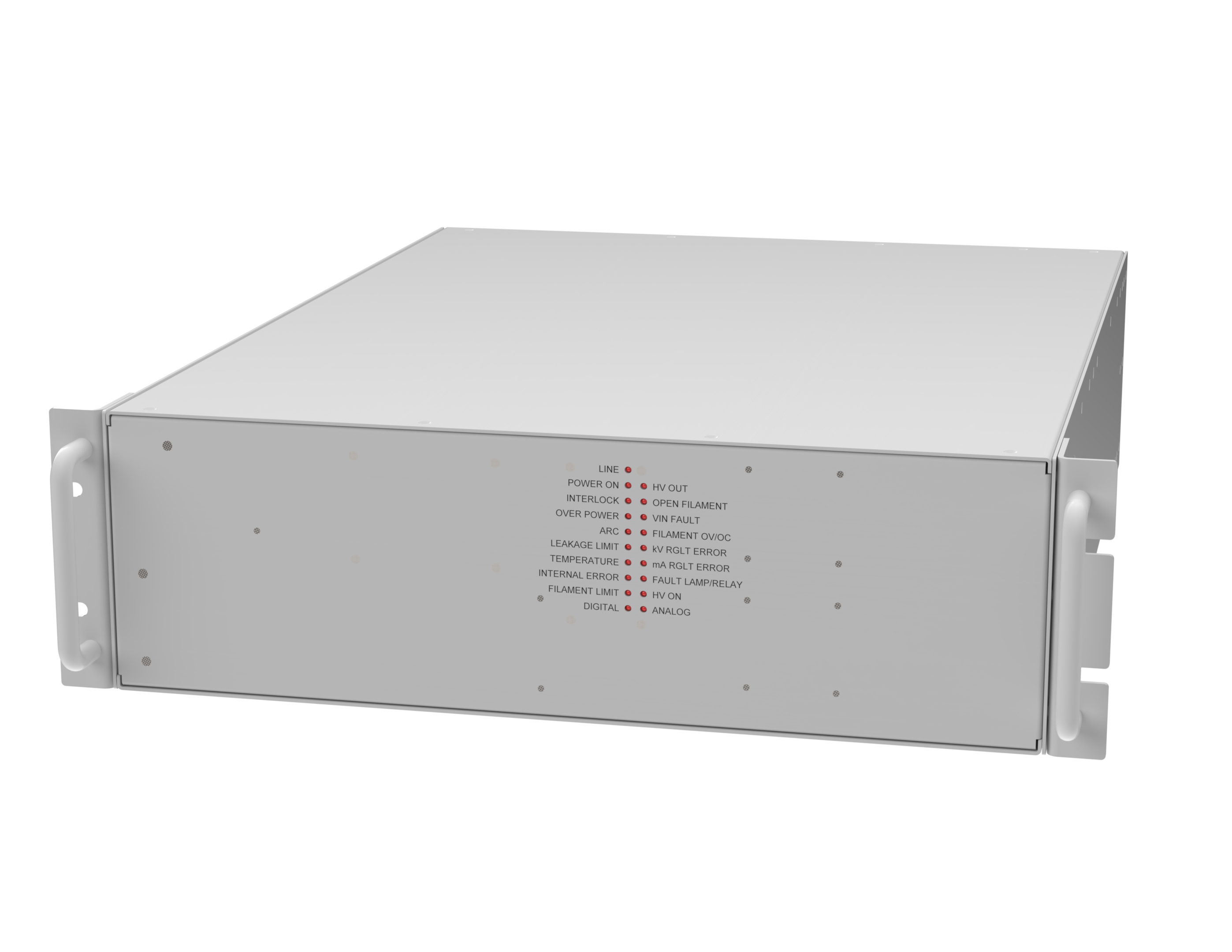

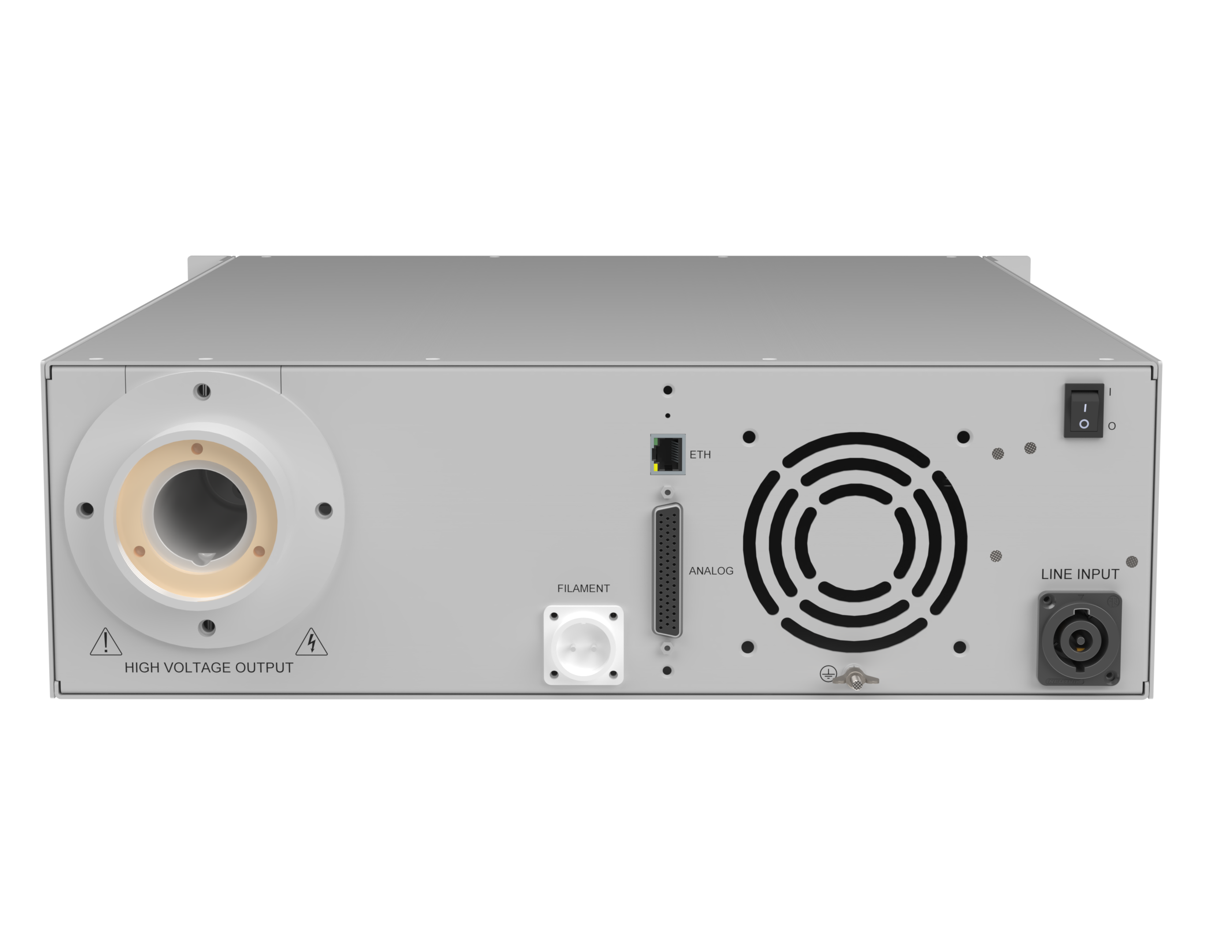

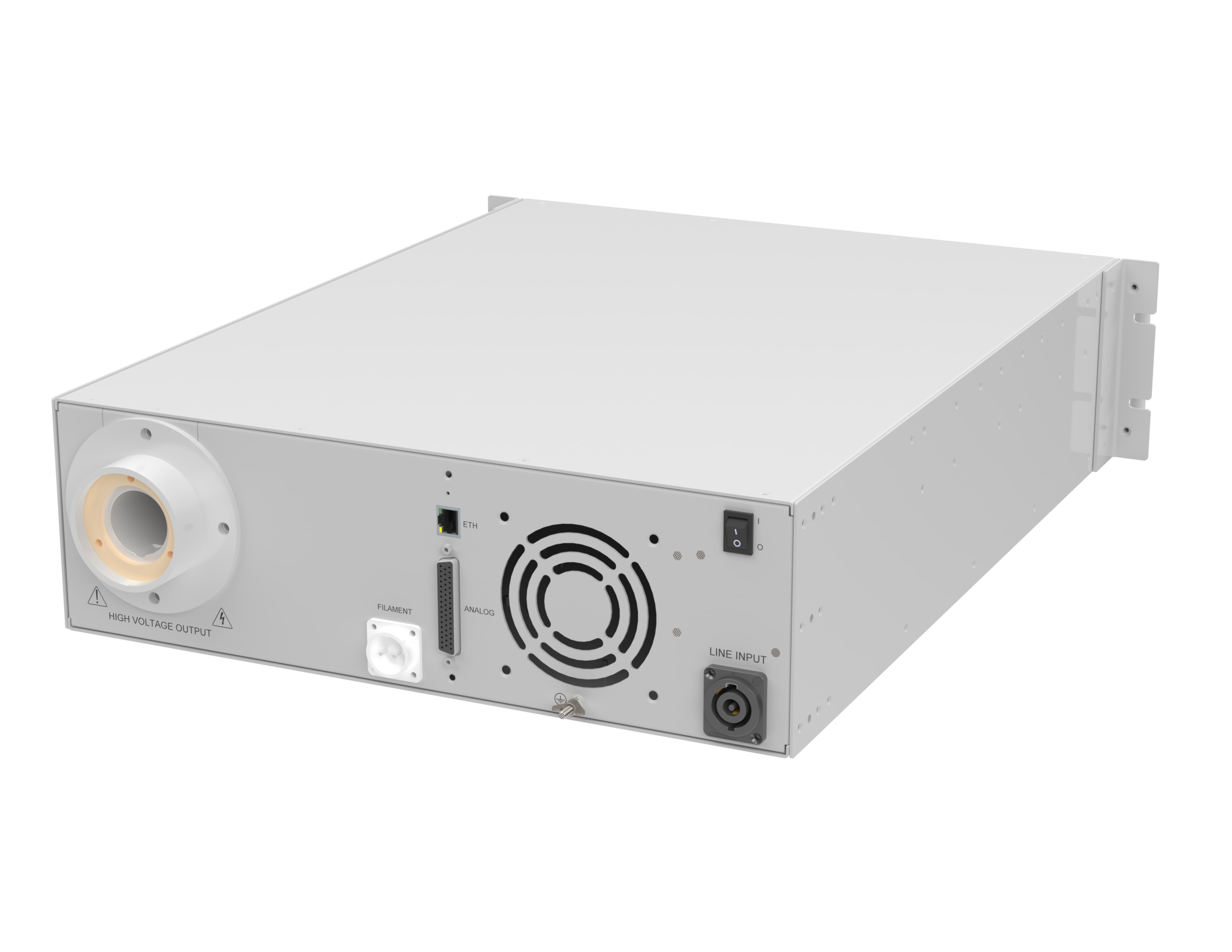

The XHVHP series of high-voltage power supplies is designed for X-ray technology, both negative and positive polarity versions are possible. Adjustment of output parameters for high-voltage output and filament from the front panel. All models are equipped with a set of protections with adjustable thresholds and support three operating modes: current, voltage and power control, which allows you to use these devices to solve a wide range of industrial and research tasks. It is possible to vary the parameters according to the needs of the customer.
FEATURES
- Input power protection
- Overload and short circuit protection
- Output over/under voltage protection
- Arc protection
- Active PFC with 99% efficiency
- Analog interfaces with optical coupling DA-15, DA-25
- Support for digital interfaces RS-232, RS-485, USB, GPIB, Ethernet
- Intuitive user software
- Production, support and service - Russian Federation
APPLICATION
X-ray diffraction analysis (XRD), X-ray fluorescence analysis (XRF)
| The lineup | Rated power, W | Maximum output voltage, kV | Maximum output current, mA | Polarity | Files |
|---|---|---|---|---|---|
| XHVHP-3-20X | 3000 | 20 | 150 | P - Positive; N - Negative | |
| XHVHP-3-30X | 3000 | 30 | 100 | ||
| XHVHP-3-40X | 3000 | 40 | 75 | ||
| XHVHP-3-50X | 3000 | 50 | 60 | ||
| XHVHP-3-60X | 3000 | 60 | 50 | ||
| XHVHP-4-20X | 4000 | 20 | 200 | ||
| XHVHP-4-30X | 4000 | 30 | 133 | ||
| XHVHP-4-40X | 4000 | 40 | 100 | ||
| XHVHP-4-50X | 4000 | 50 | 80 | ||
| XHVHP-4-60X | 4000 | 60 | 67 |
