DESCRIPTION

The HVS-FBP series is a version of high–voltage switching devices for working with a Pockels cell, equipped with a set of protections and feedbacks. The switches of this series are designed to generate ultrashort voltage pulses on a low-capacity load and are characterized by high reliability in combination with optimal overall dimensions.

FEATURES

• Operating voltage up to 2 kV
• Load capacity up to 6 pF

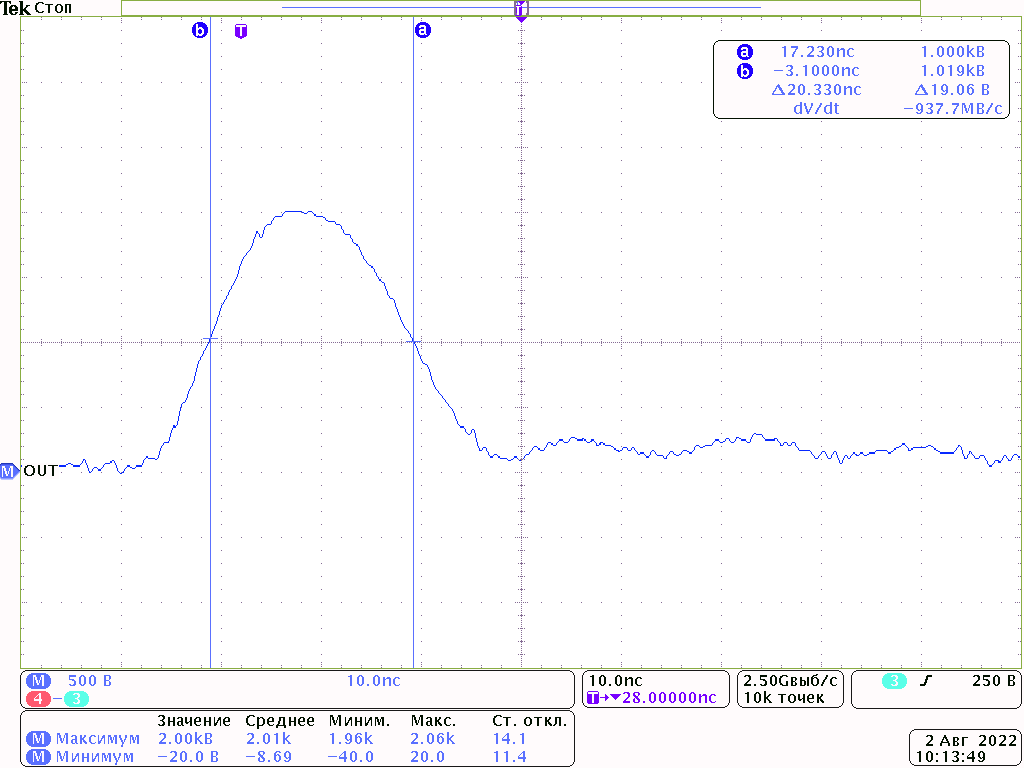

• Pulse Width 5 ns
• Standard TTL control
• Rise time from 2 to 15 ns
• Voltage drop time from 2 to 15 ns
• Maximum continuous frequency up to 100 kHz
• Supply voltage 12 V
• Ability to switch voltage from 0 V to the maximum allowable
• Low amplitude of voltage fluctuations after a pulse
• Opening / closing delay time no more than 220 ns
• High reliability, noise immunity and vibration resistance
• Extremely low temperature drift
• A working resource of at least 80,000 hours at a frequency of 1 kHz (for comparison: for arresters and thyratrons, this indicator ranges from hundreds to several thousand hours)
• Full galvanic isolation of the control module
• Possibility of connection to a circuit with 'floating ground'
• Temperature protection
• Over / Under Voltage Protection
• Reverse polarity protection
• Ability to connect external sensors
• Possibility of secure attachment to the user system

APPLICATION

Electro-optical shutter control in pulsed lasers, laser amplifiers and pulse selectors, capacitive load switching, R&D.
